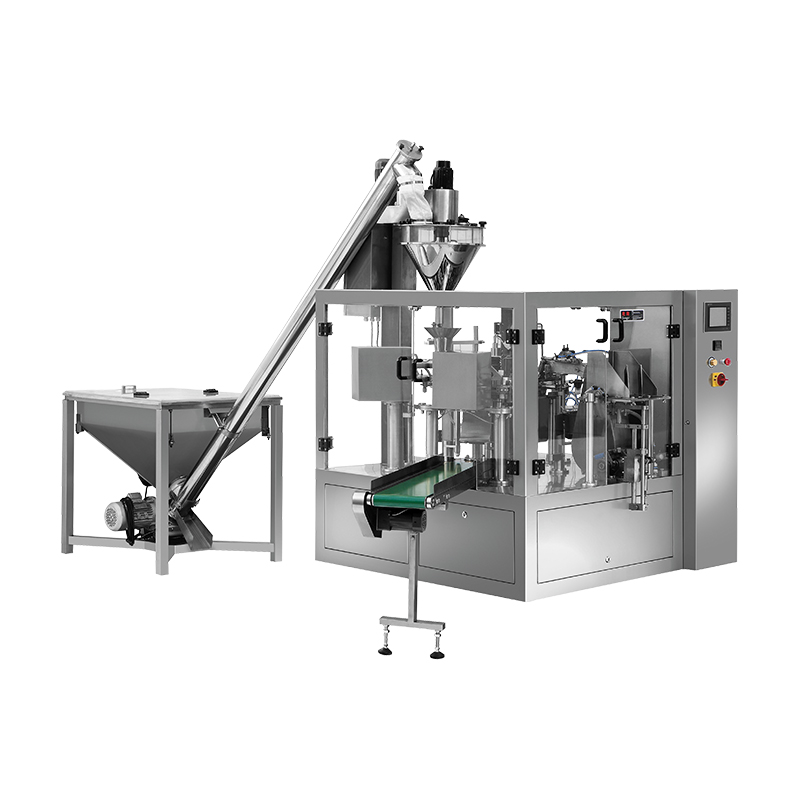

A Pre-made Bag Packaging Machine is an automated system that uses ready-made, pre-sealed pouches. It automatically opens a bag, precisely fills it with the product, and then seals the top closure. This method is ideal for complex bag shapes, stand-up pouches, and products requiring high-quality graphics, offering excellent presentation and versatility.
Applications:
Solid: Candy, chocolate, rock candy, cookies, cakes, peanuts,green beans, pistachios, nuts, cooked food, pickles, puffed food,daily necessities, etc.
Granule: MSG, chicken,sugar, melon seeds, nuts, capusules,granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.
Powder: Spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc.
Liquid: Rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
Thick liquid: Tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
Other materials can be bagged.
System can integrated with:

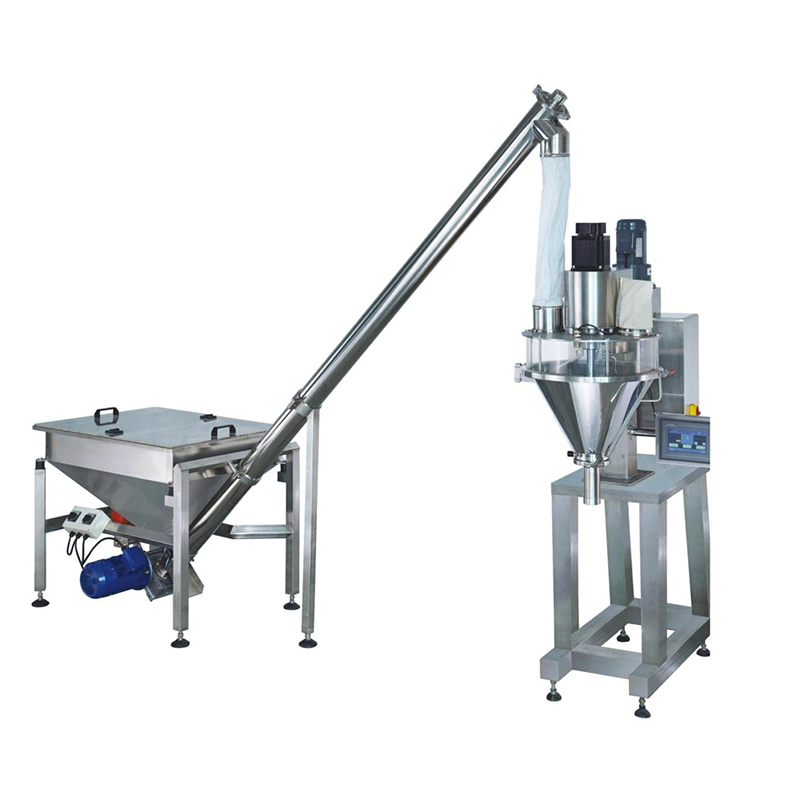

1. Auger Filler
2. Auger weigher
3. Cup Measurer
4. Conveyor
5. Check weigher
6. Metal detector
7. Dust Collector
Specifications:
Model | AG-8-200D | AG-8-300D |
Bag Materials | Heat Sealable film as PA/PE、PET/PE、AL film etc | |
Bag Size | W: 70-200 mm, L: 100-300 mm | W: 160-300 mm, L: 100-400 mm |
Filling Range | 5-1500g | 5-2500g |
Measuring Type | Auger Filler、Linear Weigher | |
Package Accuracy | Error≤±1% | |
Packaging rate | 20-45 bag/min (depended on the product and filling weight) | 10-40 bag/min (depended on the product and filling weight) |
Compress airrequirement | >0.36m3/min, MPa | >0.45m3/min, MPa |
Power Consumption | 2.3Kw | 4Kw |
Power Supply | 380V Three-phase Five-line 50Hz | |
Machine size | (L)1635×(W)1455×(H)1480 mm | (L)1645×(W)1645×(H)1640 mm |
Machine weight | About 1000Kg | About 2000Kg |
